【Introduction】:

In situ absorption spectroscopy is an advanced charaterization technique. It facilitates the examination of the light absorption characteristics of samples in real-time scenarios, thereby allowing for the acquisition of intricate, time-resolved datasets. The key of this techinique is its high temporal resolution, enabling the capture of diverse absorption spectra to not only identify the final state but also illuminate the sample's optical behavior throughout the response process. For example, during the spin-coating process of a thin film, this technique can reveal the dynamic process of film crystallization during the transition from solution to solid state.

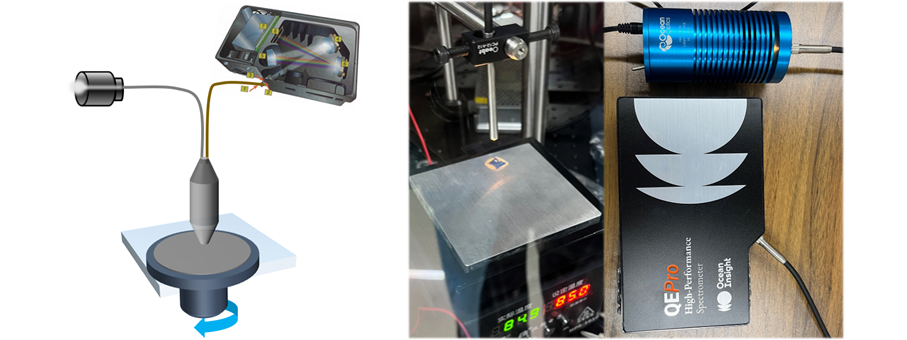

In situ absorption spectroscopy system

【Advantages】:

This system has a time resolution of up to 0.01 seconds and provides testing methods like reflection mode and transmission mode. It can be combined with different sample preparation equipment such as spin coater and slot die coater.

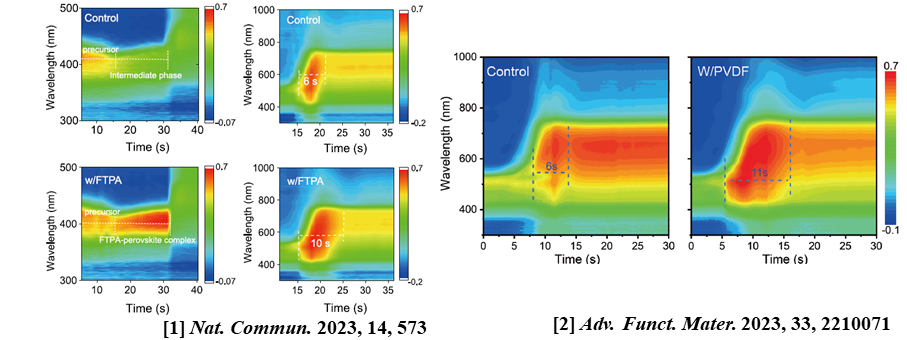

Schematic representation of test results

【Equipment specifications】:

Detectable spectral range: 185-1100 nm

Spectral resolution: 0.14-7.7 nm

FWHM: depends on the size of the grating and inlet aperture

Integration time: 8 ms -60 min

Dynamic range: 85000:1 (typical value)

Stray light:<0.08% at 600nm; 0.4% at 435nm

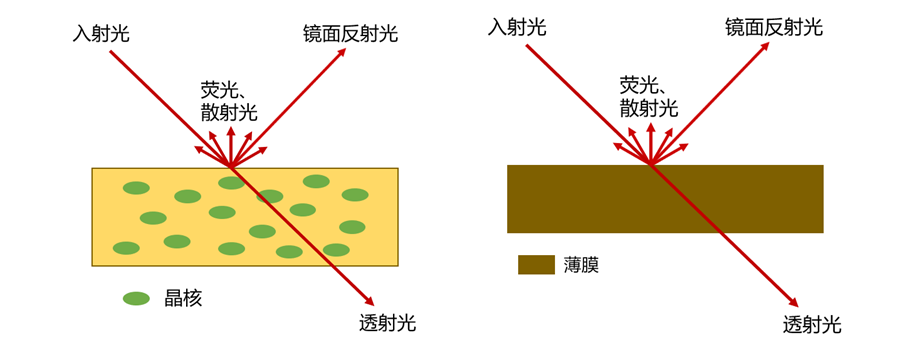

Schematic diagram of solution/film testing

【Product applications】:

【1】Nat. Commun. 2023, 14, 573

【2】Adv. Funct. Mater. 2023,33, 2210071
